IKON
shock absorbers are produced from the finest materials, surfaces are machined to
the narrowest tolerances and quality control is incorporated in all production
steps. At the end of the production line every single damper is 100% dyno-tested
to assure highest quality.

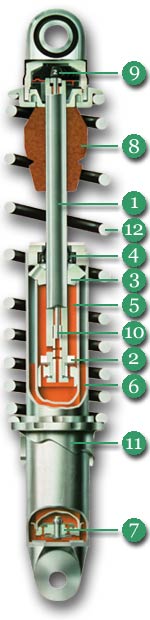

1) Hardened, chromed piston rod
2) Cast iron or sintered piston
3) Piston rod guide
4) Viton long-life seal
5) Seamless drawn steel working cylinder
6) Reservoir tube
7) Flow tested foot-valve
8) Bump stop
9) Adjustment wheel
10) Adjuster rod
11) Adjustable spring seat
12) Coil spring
