Shock Absorber Specifications
Replacement Parts
For further Shock Absorber
Specifications please see:
Shock Absorber Details
Springs for 7610 & 76 Series Shock Absorbers
|
Attachment Part |
ID |
OD |
L |
|
Ball Joints |
|||
|
1425 04 00 12 |
12.7 |
22.0 |
11.0 |
|
Silentblocks |
|||
|
1018 05 01 11 |
12.1 |
25.1 |
21.8 |
|
1018 05 01 19 |
15.1 |
28.3 |
23.0 |
|

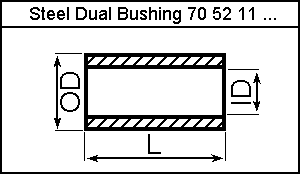

Steel Sleeves |
|||
|
70 52 11 026 0 |
9.6 |
12.0 |
17.5 |
|
70 52 11 367 0 |
10.1 |
14.0 |
19.0 |
|
70 52 11 389 0 |
10.1 |
12.0 |
22.5 |
|
70 52 11 427 0 |
12.1 |
14.0 |
19.0 |
|
70 52 11 508 0 |
10.1 |
12.0 |
19.0 |
|
70 52 11 524 0 |
10.1 |
12.0 |
21.5 |
|
70 52 11 531 0 |
10.1 |
16.0 |
25.0 |
|
70 52 11 570 0 |
10.1 |
16.0 |
19.0 |
|
70 52 11 736 0 |
14.1 |
16.0 |
19.0 |
|
Spacer (Harley Davidson) |
|||
|
70 52 11 779 0 (chromed) |
13.0 |
20.0 |
8.0 |
|
Rubberblocks |
|||
|
70 52 25 001 0 |
16.1 |
26.0 |
26.0 |
|
70 52 25 003 0 |
12.1 |
26.0 |
23.5 |
|
70 52 25 007 0 |
12.1 |
26.0 |
22.0 |
|
70 52 25 022 0 |
12.1 |
26.0 |
20.0 |
|
70 52 25 034 0 |
12.1 |
30.1 |
30.0 |
|
70 52 25 047 0 |
12.1 |
26.0 |
18.0 |
|
70 52 25 079 0 |
13.0 |
26.0 |
32.0 |
|
70 52 25 108 0 |
14.1 |
26.0 |
20.0 |
|
70 52 25 110 0 |
16.1 |
26.0 |
20.0 |
|
70 52 25 131 0 |
14.1 |
26.0 |
22.0 |
|
70 52 25 180 0 |
12.8 |
26.0 |
23.5 |
|
70 52 25 303 0 |
10.1 |
28.0 |
29.9 |
|
70 52 25 309 0 |
12.1 |
30.1 |
35.0 |
|
70 52 25 314 0 |
10.1 |
30.1 |
28.4 |
|
70 52 21 295 0 |
10.1 |
26.1 |
24.0 |
7610 PARTS
|
piston rod seal |
15 23 11 079 1 |
|
O-ring for body |
1601 72 12 13 |
|
O-ring for piston rod |
1601 70 00 05 |
|
retainer
ring |
70 40 02 085 0 |
|
top spring
seat |
70 29 01 242 0 |
|
bottom spring seat |
76 29 11 028 1 |
|
dust cover for adjuster, rubber |
15 23 24 017 1 |
|
dust cover
for spring, steel, |
70 19 56 070 0 |
|
bump stop |
15 34 38 000 0 |
|
bump stop |
71 34 26 000 0 |
|
bump spacer 8mm |
70 34 87 000 0 |
|
bump spacer 15mm |
70 34 74 000 0 |
|
bump spacer 24mm |
70 34 73 000 0 |
|
bump plate (white) |
15 34 60 000 1 |
|
steel washer 15x28x3 |
1038 06 01 50 |
|
steel washer 16x28x3 |
1038 24 00 16 |
