To

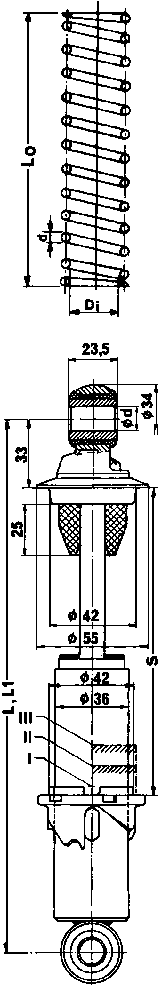

determine the correct IKON spring, first take the "S" measurement of the
applicable shock absorber (see drawing). Add 10 to 30 mm to this length for
the correct spring length (Lo).
The solid height of the spring (Lbl) should always be smaller than the
smallest length between the spring seats when the shock absorber is in full
bump position and with the lower spring seat on maximum adjustment.
So, as a
guide: Lbl < S - damper stroke - 35.
Lbl = minimum spring length (solid height).
S = length in-between the spring seats.
Lo = free length of the spring.
C = spring rate in N/mm (=kg/cm) and lbs/inch.
Di = Inside diameter.
d = wire diameter.
NB: All IKON spring seats are of the heavy duty
Part Number
Lo
Di
d
C in
N/mm
C in
lb/in
Lbl
Code
No.
Colour Code
(no longer used)
LINEAR SPRINGS
220-11
220
39
6
12
62
84
84
white-white
225-20
225
41
7
20
112
91
132
red-white
PROGRESSIVE SPRINGS
190-9/13
190
42
9-13
50-72
612
190-15/21
190
42
6.8
15-21
84-118
68
229
yellow-blue
190-28/56
190
42
8.3
28-56
156-313
105
605
-
205-15/22/28
205
42
7
15-28
84-157
81
214
blue-blue-yellow
205-17/24/31
205
42
7.3
17-31
95-174
84
231
green-green-yellow
205-17/24/31R(ed)
205
42
7.3
17-31
95-174
84
546
235-9/13/18
235
42
9-18
50-100
613
235-11/16/22
235
42
6.8
11-22
62-123
87
249
white-yellow-blue
235-15/21/26
235
42
7.3
15-26
84-146
91
230
red-blue
235-15/21/26R(ed)
235
42
7.3
15-26
84-146
91
545
235-18/25/33
235
42
7.5
18-33
100-185
94
204
blue-blue-red
235-18/25/33R(ed)
235
42
7.5
18-33
100-185
94
544
-
235-22/30/39
235
42
8
22-39
123-218
108
217
blue-blue-green
235-26/34/43
235
42
26-43
143-237
607
-
235-32/41/52 **
235
42
9
32-52
180-292
120
515
-
235-41/47/62 **
235
42
9.5
41-62
229-345
606
-
250-15/21/28
250
42
7.5
15-28
84-157
110
215
white-white-red
250-19/29/42
250
42
8
19-42
106-235
116
222
white-blue
250-19/29/42R
250
42
8
19-42
106-235
116
614
255-18/25/33
255
42
7.8
18-34
100-185
110
213
blue-blue-white
255-18/25/33R(ed)
255
42
7.8
18-34
100-185
110
610
-
PROGRESSIVE CHROMED SPRINGS
190-15/21CH
190
42
15-21
84-118
603
-
190-28/56CH **
190
42
8.3
28-56
156-313
105
524
-
205-15/22/28CH
205
42
7
15-28
95-174
84
604
-
205-17/24/31CH
205
42
7.3
17-31
95-174
84
466
-
235-15/21/26CH
235
42
15-26
84-146
600
-
235-18/25/33CH
235
42
7.5
18-33
100-185
94
439
-
235-22/30/39CH
235
42
8
22-39
123-218
108
514
-
235-26/34/43CH **
235
42
26-43
143-237
608
235-32/41/52CH **
235
42
9
32-52
180-292
120
489
-
235-41/47/62CH **
235
42
41-62
229-345
611
250-19/29/42CH
250
42
19-42
106-235
601
-
255-18/25/33CH
255
42
18-34
100-185
602
-
OFF ROAD PROGRESSIVE RATE SPRINGS (green powder coated)
280-13/25
280
42
8.2
13-25
904
280-15/28
280
42
8.2
15-28
905
280-18/29
280
42
8.2
18-29
903
280-20/33
280
42
8.2
20-33
902
280-22/38
280
42
8.2
22-38
901
** = use ONLY with heavy duty spring seat (part no. 70 29 01 242 0 or 70 29 01 241 0)
